Demolition Robot 2.0
22 kW ElectricRemote-controlled demolition robot: 22 kW motor, 2000 kg machine weight, cable/radio digital control, 30° gradeability.
View Details →
Products Overview
Providing Products of Exceptional Value
Six proven models for rotary kiln refractory installation and demolition — each one CE-certified, lightweight and built for safety and speed.
Demolition Robot 1.0
15 kW ElectricCompact demolition robot: 15 kW motor, 1100 kg machine weight, 2.5 km/h travel speed, load-sensing hydraulic system.
View Details →

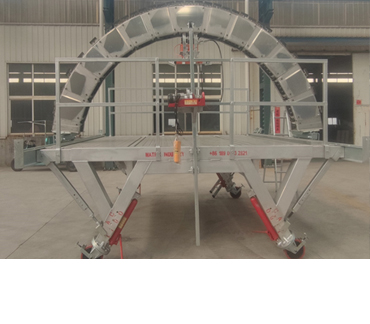

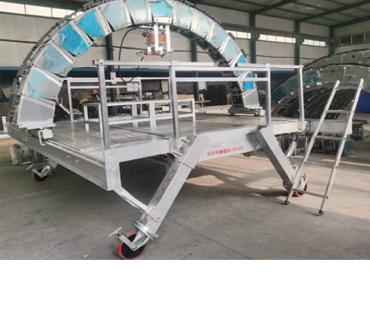

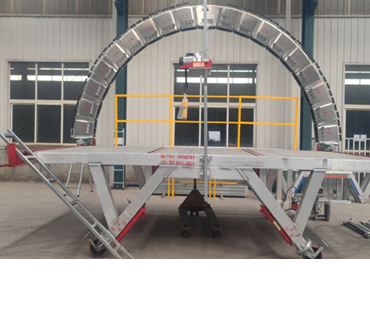

QZJ1.8KT-1 Bricking Lining Machine
CE CertifiedFor rotary kilns Ø1800–2400 mm. Only 260 kg with a 204×60×86 cm packing box — the lightest way into tight kilns.
View Details →
QZJ2.5KT-1 Bricking Lining Machine
CE CertifiedFor rotary kilns Ø2500–4000 mm. 2000 kg payload, 6061-T6 aluminium frame, up to 1 m/hour bricklaying speed.
View Details →
QZJ5KT-1 Bricking Lining Machine
CE CertifiedFor rotary kilns Ø4000–5000 mm. 2000 kg payload, modular pin assembly in under 2 hours, pneumatic hammer included.
View Details →
QZJ10KT-1 Bricking Lining Machine
CE CertifiedFor rotary kilns Ø5000–6000 mm. 5000 kg payload, 1900 kg machine weight — heavy-duty performance for the biggest kilns.
View Details →
Custom Solutions
Learn About Custom Machines
Customized Bricklaying Machines Tailored to Your Kiln Diameter
Every kiln project has unique structural and dimensional requirements. We design custom bricklaying machines matched to your kiln diameter range — for rotary kilns, vertical shaft kilns or tunnel kilns — delivering precision, flexibility and cost savings.
330×180×200
cm Steel Crate Shipping
Custom machines are fully disassembled into a reinforced steel crate of approx. 2300 kg, ideal for sea or land transport.
Save
Cost Through Precision Design
No oversized frames, no unused automation — just a machine engineered to fit your kiln and your budget.
Machine Accessories
Our Quality Products Include
Y = Included with the machine | C = Configurable on some machines | B = Purchased separately
FAQ
Frequently Asked Questions
Which kiln diameters do your bricking machines support?
Rotary kilns from 1800 mm to 6000 mm inner diameter: QZJ1.8KT-1 (1800–2400 mm), QZJ2.5KT-1 (2500–4000 mm), QZJ5KT-1 (4000–5000 mm) and QZJ10KT-1 (5000–6000 mm). Custom machines can be engineered to your exact kiln diameter.
Are your bricking machines CE certified?
Yes. The QZJ series bricking lining machines are fully CE-certified, with safety check valves, fall guards and anti-derailment fixtures built in for operator safety.
Can you build a custom bricklaying machine for my kiln?
Yes. We tailor the working radius, arch frame width and height, component modules and mobility to your kiln diameter range, wall height and automation preference.
How are the machines packed and shipped?
Machines are disassembled into major components and securely fixed inside a reinforced steel crate of 330×180×200 cm (approx. 2300 kg packed) — suitable for sea or land transport, with packing lists, assembly instructions and safety guidelines included.
Do you provide spare parts and after-sales support?
Yes. Every machine ships with a comprehensive toolbox and long-term spare parts kits (1 or 2 years optional). Our team provides installation guidance, operator training and maintenance support.
How fast can the machine be installed on site?
The modular pin assembly system enables setup in under 2 hours with an experienced crew; the machine reaches a bricklaying speed of up to 1 meter per hour with a skilled operator.
Need Help Choosing the Right Model?
Tell us your kiln diameter, wall height and automation preferences — our engineering team will recommend the best machine and send you detailed specifications.
