    HOME 涓婚〉 » PRODUCTS » Bricking Machine QZJ5KT-1/BRICKING RIG

    Bricking Machine QZJ5KT-1/BRICKING RIG

    2021-03-22 |
    Keywords: ROTARY KILN MACHINE, BRICKING MACHINE, BRICK LINING MACHINE, BRICKING RIG, BRICK LAYING MACHINE, BRICK INLINE MACHINE

    Product Name: Bricking Machine/Rotary Kiln Brick Laying Machine

    MODEL

    Dimensions

    Working Pressure

    Working Stroke

    Cylinder Stroke

    Weight

    Application

    QZJ5KT-1

    4200x4330x3730

    0.4-0.6Mpa

    3500mm

    160mm

    2200kgs

    4-5m kiln Diameter

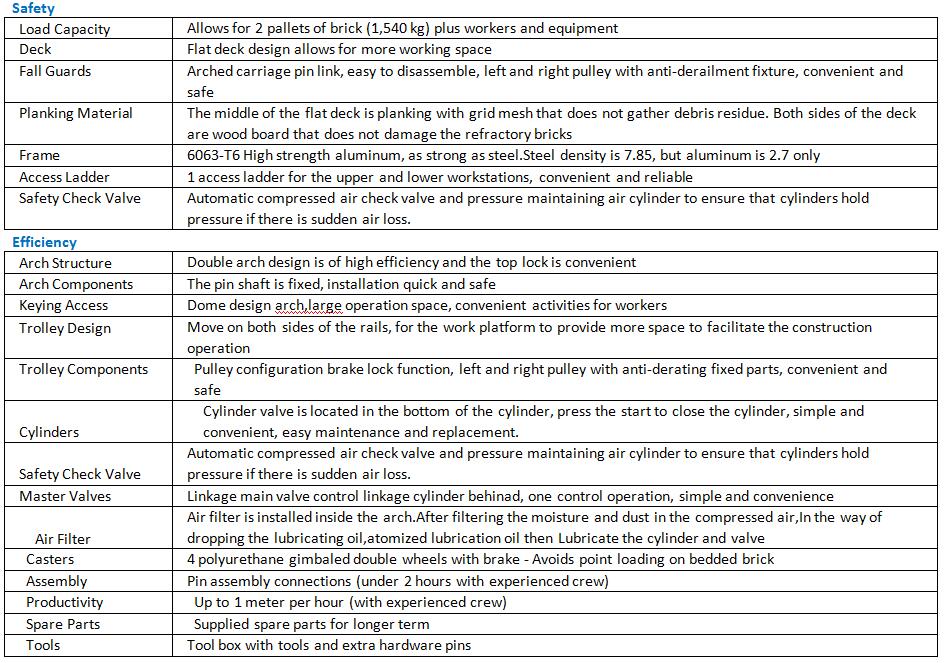

    HAIDE Bricking Machine Technical Specifications

    Kiln Diameter Range: 3meter up to 7.6 meter Single machine has a maximum 2 meter range 鏈枃鏉ヨ嚜濡傛柉

    PACKAGE & DELIVERY
           20ft' Iron Container for main parts & Wooden box for guild rail.
    COMPANY VISION
           HAIDE’s mission is to deliver consistent quality Bricking Machine to Rotary Kilns. The strategic value we bring is the high quality machine and services at
    cost-effective prices. Since our begginings,we invest in technical advances and our people, HAIDE and our Technical Service Team have been committed to
     improving and optimizing machine performance, and developing new products.
    This approach has been key to our building and maintaining partnerships with leading industry groups around the globe. asthis.net
    All transaction due to late delivery or bad quality will be compensated by 100% payment return

    CUSTOMERS VISIT

    WARRANTY
           Main parts: 1 year quality warranty
           Spare parts: 1 year free change if it is not man-made damage
